All parts for the Fuel Tank of the Honda CBR 125R 2004

Here you can find all the spareparts that belong on the Fuel Tank of your Honda CBR 125R 2004.

All parts for the Fuel Tank of the Honda CBR 125R 2004
< Scroll to zoom >
#
Article
Description
Price
#1 16950KJ9752 Auto cock assy,fu Honda 16950KJ9752

Auto cock assy,fu Honda 16950KJ9752

€ 103,06 3 - 5 Business days
#2 16952GS7950 Screen set, fuel strainer Honda 16952GS7950

Screen set, fuel strainer Honda 16952GS7950

€ 24,07 3 - 5 Business days
#3 16958397771 Oring, 9.0x1.3 Honda 16958397771

Oring, 9.0x1.3 Honda 16958397771

€ 8,88 3 - 5 Business days
#4 17511KPP900 Rubber, fuel tank Honda 17511KPP900

Rubber, fuel tank Honda 17511KPP900

€ 1,65 3 - 5 Business days
#5 17517KPP900 Rubber, fuel tank fr. Honda 17517KPP900

Rubber, fuel tank fr. Honda 17517KPP900

€ 3,78 3 - 5 Business days
#7 17525KPP900 Collar, fuel tank Honda 17525KPP900

Collar, fuel tank Honda 17525KPP900

€ 2,24 3 - 5 Business days
#9 17614KBA900 Cushion, rr. fuel tank Honda 17614KBA900

Cushion, rr. fuel tank Honda 17614KBA900

€ 19,13 3 - 5 Business days
#10 17620MM5017 Cap comp,fuel fil Honda 17620MM5017

Cap comp,fuel fil Honda 17620MM5017

€ 190,68 3 - 5 Business days
#10 17620MM5007 Cap assy., fuel filler Honda 17620MM5007

Cap assy., fuel filler Honda 17620MM5007

€ 191,63 3 - 5 Business days
#11 17631KPP900 Tube, fuel Honda 17631KPP900

Tube, fuel Honda 17631KPP900

€ 4,03 3 - 5 Business days
#13 37800KPP901 Fuel unit assy. Honda 37800KPP901

Fuel unit assy. Honda 37800KPP901

€ 82,32 3 - 5 Business days
#14 37801HA7750 O-ring, 34x5 Honda 37801HA7750

O-ring, 34x5 Honda 37801HA7750

€ 5,59 3 - 5 Business days
#16 83511300000 Grommet Honda 83511300000

Grommet Honda 83511300000

€ 6,01 3 - 5 Business days
#16 83551300000 Grommet, air cleaner case Honda 83551300000

Grommet, air cleaner case Honda 83551300000

€ 8,13 3 - 5 Business days
#17 90114MG9770 Screw, protector setting Honda 90114MG9770

Screw, protector setting Honda 90114MG9770

€ 6,67 3 - 5 Business days
#18 9390324320 Screw, tapping, 4x12 Honda 9390324320

Screw, tapping, 4x12 Honda 9390324320

€ 0,67 3 - 5 Business days
#19 94050006000 Nut flange 6mm Honda 94050006000

Nut flange 6mm Honda 94050006000

€ 1,09 3 - 5 Business days
#19 94050060000S Nut,flange 6mm Honda 94050060000S

Nut,flange 6mm Honda 94050060000S

€ 1,09 3 - 5 Business days
#19 9405006000 Nut, flange, 6mm Honda 9405006000

Nut, flange, 6mm Honda 9405006000

€ 1,13 3 - 5 Business days
#20 90651KWPF00 Clip, tube (b7) Honda 90651KWPF00

Clip, tube (b7) Honda 90651KWPF00

€ 1,00 3 - 5 Business days
#20 9500202070 Clip, tube (b7) Honda 9500202070

Clip, tube (b7) Honda 9500202070

€ 1,03 3 - 5 Business days
#21 90652KWPF00 Clip, tube (b8) Honda 90652KWPF00

Clip, tube (b8) Honda 90652KWPF00

€ 0,81 3 - 5 Business days
#21 9500202080 Clip, tube (b8) Honda 9500202080

Clip, tube (b8) Honda 9500202080

€ 0,86 3 - 5 Business days
#22 9500250000 Clip, tube (c9) Honda 9500250000

Clip, tube (c9) Honda 9500250000

€ 0,82 3 - 5 Business days
#24 958010802500 Bolt, flange, 8x25 Honda 958010802500

Bolt, flange, 8x25 Honda 958010802500

€ 1,65 3 - 5 Business days
#24 9570108025 Bolt, flange, 8x25 Honda 9570108025

Bolt, flange, 8x25 Honda 9570108025

€ 1,66 3 - 5 Business days
#24 957000802500 Bolt, flange, 8x25 Honda 957000802500

Bolt, flange, 8x25 Honda 957000802500

€ 1,71 3 - 5 Business days
#24 957010802500 Bolt, flange, 8x25 Honda 957010802500

Bolt, flange, 8x25 Honda 957010802500

€ 1,71 3 - 5 Business days

Servicing your Honda CBR 125R?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Honda CBR 125R, to be able to carry out the maintenance on your Honda CBR 125R as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Honda CBR 125R.


Find the parts while repairing your Honda!

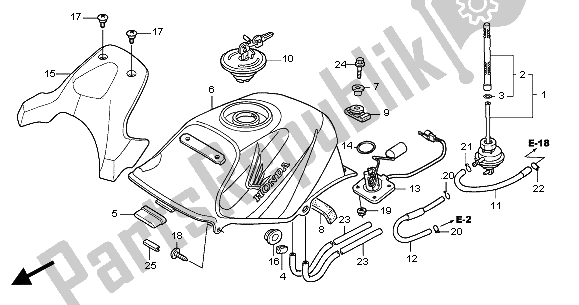

The technical drawing shows all original parts for the Fuel Tank of the Honda CBR 125R 2004. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Honda items, but they can also be replacement aftermarket items, which are suitable for the Fuel Tank. These articles of course also fit on the Honda CBR 125R 2004, but serve as a cheaper alternative than the original parts of Honda.
