honda, 06406KTYH50 chain kit, drive (42815&44t), 40510KPPT00 case, drive chain, 40540KTYD31 , 40541KTYD31 joint, drive chain, 40543KPPT00 adjuster, chain, 40546KR1760 cap, rr. fork end, 52170KPPT00 slider, chain, 52171KR6000 washer, chain slider, 52200KPPT00ZB swingarm sub assy.,, 52200KPPT00ZA swingarm sub assy., rr. *nh1* (nh1 black), 90121KPP900 bolt, swi ngarm pivot, 90302KBP900 nut, special, 6mm, 90306KGH901 nut, u, 12mm (fuji seimitsu), 90513405000 washer, 6x9, 90563KC5000 washer, chain case setting, 9390125080 screw, tapping, 5x8, 94001060000S nut, hex., 6mm, 94001062000S nut, hex., 6mm, 957010601207 bolt, flange, 6x12

All parts for the Swingarm of the Honda CBR 125R 2012

Here you can find all the spareparts that belong on the Swingarm of your Honda CBR 125R 2012.

All parts for the Swingarm of the Honda CBR 125R 2012
< Scroll to zoom >
#
Article
Description
Price
#1 06406KTYH50 Chain kit, drive (42815&44t) Honda 06406KTYH50

Chain kit, drive (42815&44t) Honda 06406KTYH50

€ 168,17 3 - 5 Business days
#2 40510KPPT00 Case, drive chain Honda 40510KPPT00

Case, drive chain Honda 40510KPPT00

€ 39,01 3 - 5 Business days
#4 40541KTYD30 Joint zj,drive ch Honda 40541KTYD30

Joint zj,drive ch Honda 40541KTYD30

€ 16,14 3 - 5 Business days
#4 40541KTYD31 Joint, drive chain Honda 40541KTYD31

Joint, drive chain Honda 40541KTYD31

€ 22,26 3 - 5 Business days
#5 40543KPPT00 Adjuster, chain Honda 40543KPPT00

Adjuster, chain Honda 40543KPPT00

€ 6,85 3 - 5 Business days
#6 40546KR1760 Cap, rr. fork end Honda 40546KR1760

Cap, rr. fork end Honda 40546KR1760

€ 8,97 3 - 5 Business days
#7 52170KPPT00 Slider, chain Honda 52170KPPT00

Slider, chain Honda 52170KPPT00

€ 52,51 3 - 5 Business days
#8 52171KPS900 Washer, chain slider Honda 52171KPS900

Washer, chain slider Honda 52171KPS900

€ 1,55 3 - 5 Business days
#8 52171KR6000 Washer, chain slider Honda 52171KR6000

Washer, chain slider Honda 52171KR6000

€ 2,02 3 - 5 Business days
#9 52200KPPT00ZB Swingarm sub assy., Honda 52200KPPT00ZB

Swingarm sub assy., Honda 52200KPPT00ZB

€ 428,24 3 - 5 Business days
#9 52200KPPT00ZA Swingarm sub assy., rr. *nh1* (nh1 black) Honda 52200KPPT00ZA

Swingarm sub assy., rr. *nh1* (nh1 black) Honda 52200KPPT00ZA

€ 428,24 3 - 5 Business days
#10 90121KPP900 Bolt, swi ngarm pivot Honda 90121KPP900

Bolt, swi ngarm pivot Honda 90121KPP900

€ 11,63 3 - 5 Business days
#11 90302KBP900 Nut, special, 6mm Honda 90302KBP900

Nut, special, 6mm Honda 90302KBP900

€ 3,22 3 - 5 Business days
#12 90306KGH901 Nut, u, 12mm (fuji seimitsu) Honda 90306KGH901

Nut, u, 12mm (fuji seimitsu) Honda 90306KGH901

€ 4,79 3 - 5 Business days
#13 90513405000 Washer, 6x9 Honda 90513405000

Washer, 6x9 Honda 90513405000

€ 3,86 3 - 5 Business days
#14 90563KC5000 Washer, chain case setting Honda 90563KC5000

Washer, chain case setting Honda 90563KC5000

€ 3,27 3 - 5 Business days
#15 9390125080 Screw, tapping, 5x8 Honda 9390125080

Screw, tapping, 5x8 Honda 9390125080

€ 0,67 3 - 5 Business days
#16 9400106000 Nut, hex., m6 Honda 9400106000

Nut, hex., m6 Honda 9400106000

€ 0,92 3 - 5 Business days
#16 9400106000OS Nut hex 6 mm Honda 9400106000OS

Nut hex 6 mm Honda 9400106000OS

€ 0,92 3 - 5 Business days
#16 9400106000S Nut Honda 9400106000S

Nut Honda 9400106000S

€ 0,92 3 - 5 Business days
#16 94001060000S Nut, hex., 6mm Honda 94001060000S

Nut, hex., 6mm Honda 94001060000S

€ 0,93 3 - 5 Business days
#16 94001062000S Nut, hex., 6mm Honda 94001062000S

Nut, hex., 6mm Honda 94001062000S

€ 0,93 3 - 5 Business days
#17 958010601207 Bolt, flange, 6x12 Honda 958010601207

Bolt, flange, 6x12 Honda 958010601207

€ 1,13 3 - 5 Business days
#17 957010601207 Bolt, flange, 6x12 Honda 957010601207

Bolt, flange, 6x12 Honda 957010601207

€ 1,13 3 - 5 Business days

Servicing your Honda CBR 125R?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Honda CBR 125R, to be able to carry out the maintenance on your Honda CBR 125R as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Honda CBR 125R.


Find the parts while repairing your Honda!

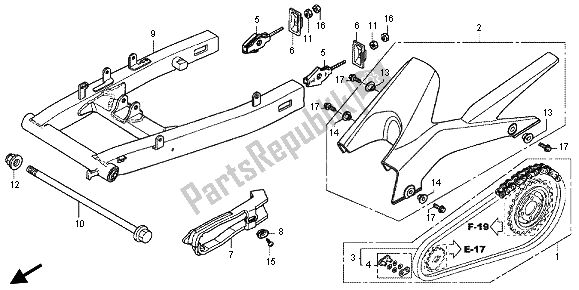

The technical drawing shows all original parts for the Swingarm of the Honda CBR 125R 2012. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Honda items, but they can also be replacement aftermarket items, which are suitable for the Swingarm. These articles of course also fit on the Honda CBR 125R 2012, but serve as a cheaper alternative than the original parts of Honda.
