All parts for the Rear Final Gear of the Honda TRX 420 FE Fourtrax Rancher 4X4 ES 2013

Here you can find all the spareparts that belong on the Rear Final Gear of your Honda TRX 420 FE Fourtrax Rancher 4X4 ES 2013.

All parts for the Rear Final Gear of the Honda TRX 420 FE Fourtrax Rancher 4X4 ES 2013
< Scroll to zoom >
#
Article
Description
Price
#1 06910HP0A00 Bearing set, needle Honda 06910HP0A00

Bearing set, needle Honda 06910HP0A00

€ 37,58 3 - 5 Business days
#2 12342MEG300 Rubber comp., over head c Honda 12342MEG300

Rubber comp., over head c Honda 12342MEG300

€ 2,54 3 - 5 Business days
#3 12361035000 Cap, tappet adjusting hole Honda 12361035000

Cap, tappet adjusting hole Honda 12361035000

€ 7,21 3 - 5 Business days
#4 40200HP5600 Shaft comp., rr. propelle Honda 40200HP5600

Shaft comp., rr. propelle Honda 40200HP5600

€ 131,83 3 - 5 Business days
#5 40215HN0671 Spring, propeller shaft Honda 40215HN0671

Spring, propeller shaft Honda 40215HN0671

€ 4,71 3 - 5 Business days
#6 40300HP5600 Joint assy., yoke Honda 40300HP5600

Joint assy., yoke Honda 40300HP5600

€ 153,61 3 - 5 Business days
#7 40321HP5600 Boot, yoke joint Honda 40321HP5600

Boot, yoke joint Honda 40321HP5600

€ 27,20 3 - 5 Business days
#8 40322HN8000 Band a, yoke joint boot Honda 40322HN8000

Band a, yoke joint boot Honda 40322HN8000

€ 19,07 3 - 5 Business days
#9 40323HN8000 Band b, yoke joint boot Honda 40323HN8000

Band b, yoke joint boot Honda 40323HN8000

€ 16,24 3 - 5 Business days
#13 41405HA7670 Ring, stopper Honda 41405HA7670

Ring, stopper Honda 41405HA7670

€ 6,06 3 - 5 Business days
#14 41421HP5600 Gear, rr. pinion (20t) Honda 41421HP5600

Gear, rr. pinion (20t) Honda 41421HP5600

€ 381,83 3 - 5 Business days
#15 41431HP5600 Gear, rr. ring (41t) Honda 41431HP5600

Gear, rr. ring (41t) Honda 41431HP5600

€ 481,23 3 - 5 Business days
#16 41436MB0310 Pin, ring gear stopper Honda 41436MB0310

Pin, ring gear stopper Honda 41436MB0310

€ 28,71 3 - 5 Business days
#17 41438MB0310 Shim b, stopper pin (0.15 Honda 41438MB0310

Shim b, stopper pin (0.15 Honda 41438MB0310

€ 9,51 3 - 5 Business days
#18 41542HA0000 Spacer c, ring gear(1.94) Honda 41542HA0000

Spacer c, ring gear(1.94) Honda 41542HA0000

€ 14,62 3 - 5 Business days
#18 41541HA0000 Spacer b, ring gear (1.88 Honda 41541HA0000

Spacer b, ring gear (1.88 Honda 41541HA0000

€ 16,02 3 - 5 Business days
#18 41543HA0000 Spacer d, ring gear(2.00) Honda 41543HA0000

Spacer d, ring gear(2.00) Honda 41543HA0000

€ 17,05 3 - 5 Business days
#18 41544HA0000 Spacer e, ring gear (2.06 Honda 41544HA0000

Spacer e, ring gear (2.06 Honda 41544HA0000

€ 17,05 3 - 5 Business days
#18 41546HA0000 Spacer g, ring gear (2.18 Honda 41546HA0000

Spacer g, ring gear (2.18 Honda 41546HA0000

€ 17,05 3 - 5 Business days
#18 41547HA0000 Spacer h, ring gear (2.24 Honda 41547HA0000

Spacer h, ring gear (2.24 Honda 41547HA0000

€ 17,05 3 - 5 Business days
#18 41548HA0000 Spacer i, ring gear (2.30 Honda 41548HA0000

Spacer i, ring gear (2.30 Honda 41548HA0000

€ 17,05 3 - 5 Business days
#18 41540HA0000 Spacer a, ring gear(1.82) Honda 41540HA0000

Spacer a, ring gear(1.82) Honda 41540HA0000

€ 17,55 3 - 5 Business days
#18 41545HA0000 Spacer f, ring gear(2.12) Honda 41545HA0000

Spacer f, ring gear(2.12) Honda 41545HA0000

€ 17,55 3 - 5 Business days
#19 41669HP5600 Shim j, ring gear (1.80) Honda 41669HP5600

Shim j, ring gear (1.80) Honda 41669HP5600

€ 21,01 3 - 5 Business days
#20 42310HP5600 Axle comp., rr. Honda 42310HP5600

Axle comp., rr. Honda 42310HP5600

€ 239,62 3 - 5 Business days
#21 42317HP5600 Collar c, rr. axle Honda 42317HP5600

Collar c, rr. axle Honda 42317HP5600

€ 70,74 3 - 5 Business days
#22 50355HP5600 Guard comp., final Honda 50355HP5600

Guard comp., final Honda 50355HP5600

€ 85,18 3 - 5 Business days
#23 90109371000 Bolt, sealing, 8mm Honda 90109371000

Bolt, sealing, 8mm Honda 90109371000

€ 7,64 3 - 5 Business days
#24 957010801408 Bolt, flange, 8x14 Honda 957010801408

Bolt, flange, 8x14 Honda 957010801408

€ 1,32 3 - 5 Business days
#25 90133HP5600 Bolt, flange, 8x27 Honda 90133HP5600

Bolt, flange, 8x27 Honda 90133HP5600

€ 4,57 3 - 5 Business days
#26 90134HP5600 Bolt, flange, 10x35 Honda 90134HP5600

Bolt, flange, 10x35 Honda 90134HP5600

€ 6,43 3 - 5 Business days
#27 90135HA7770 Bolt, stud, 10x22 Honda 90135HA7770

Bolt, stud, 10x22 Honda 90135HA7770

€ 9,04 3 - 5 Business days
#28 90242MB0000 Nut, lock, 64mm Honda 90242MB0000

Nut, lock, 64mm Honda 90242MB0000

€ 42,16 3 - 5 Business days
#29 90305HC0770 Nut, selflock, 10mm Honda 90305HC0770

Nut, selflock, 10mm Honda 90305HC0770

€ 4,83 3 - 5 Business days
#30 90307HM5930 Nut, rr. axle Honda 90307HM5930

Nut, rr. axle Honda 90307HM5930

€ 5,18 3 - 5 Business days
#30 90307HC4000 Nut, rr. axle Honda 90307HC4000

Nut, rr. axle Honda 90307HC4000

€ 33,18 3 - 5 Business days
#31 90308HM5930 Nut a, rr. axle Honda 90308HM5930

Nut a, rr. axle Honda 90308HM5930

€ 5,09 3 - 5 Business days
#32 90471580000 Packing, 8mm Honda 90471580000

Packing, 8mm Honda 90471580000

€ 2,67 3 - 5 Business days
#33 90481HC4000 Washer, taper Honda 90481HC4000

Washer, taper Honda 90481HC4000

€ 7,13 3 - 5 Business days
#35 90501HP5600 Washer, 32x67x1.5 Honda 90501HP5600

Washer, 32x67x1.5 Honda 90501HP5600

€ 8,20 3 - 5 Business days
#36 91005PL9008 Bearing, ball, 6009 (ntn) Honda 91005PL9008

Bearing, ball, 6009 (ntn) Honda 91005PL9008

€ 65,38 3 - 5 Business days
#38 91251HP5601 Oil seal, 39x70x11 Honda 91251HP5601

Oil seal, 39x70x11 Honda 91251HP5601

€ 9,90 3 - 5 Business days
#39 91255HP5601 Oil seal, 44x63x8 Honda 91255HP5601

Oil seal, 44x63x8 Honda 91255HP5601

€ 18,74 3 - 5 Business days
#40 91271HM5630 Oil seal 42x51x7 Honda 91271HM5630

Oil seal 42x51x7 Honda 91271HM5630

€ 11,59 3 - 5 Business days
#40 91271HC4004 Oil seal, 42x51x7 Honda 91271HC4004

Oil seal, 42x51x7 Honda 91271HC4004

€ 11,74 3 - 5 Business days
#41 91302GFM970 O-ring, 30.8mm Honda 91302GFM970

O-ring, 30.8mm Honda 91302GFM970

€ 3,35 3 - 5 Business days
#41 91302001020 Oring, 30.8mm Honda 91302001020

Oring, 30.8mm Honda 91302001020

€ 4,85 3 - 5 Business days
#42 91305KE1000 Oring, 19.4x2.3 Honda 91305KE1000

Oring, 19.4x2.3 Honda 91305KE1000

€ 5,17 3 - 5 Business days
#43 91320HM7702 Oring, 75x3.2 (nok) Honda 91320HM7702

Oring, 75x3.2 (nok) Honda 91320HM7702

€ 5,87 3 - 5 Business days
#44 91354HM5630 O-ring,31.6x2.2 Honda 91354HM5630

O-ring,31.6x2.2 Honda 91354HM5630

€ 3,86 3 - 5 Business days
#44 91354HC4901 O-ring, 31.6x2.2 Honda 91354HC4901

O-ring, 31.6x2.2 Honda 91354HC4901

€ 4,95 3 - 5 Business days
#45 9500235000 Clip, tube (c6.5) Honda 9500235000

Clip, tube (c6.5) Honda 9500235000

€ 0,67 3 - 5 Business days
#47 961006007300 Bearing, radial ball, 6007 Honda 961006007300

Bearing, radial ball, 6007 Honda 961006007300

€ 32,33 3 - 5 Business days

Servicing your Honda TRX 420 FE Fourtrax Rancher 4X4 ES?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Honda TRX 420 FE Fourtrax Rancher 4X4 ES, to be able to carry out the maintenance on your Honda TRX 420 FE Fourtrax Rancher 4X4 ES as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Honda TRX 420 FE Fourtrax Rancher 4X4 ES.


Find the parts while repairing your Honda!

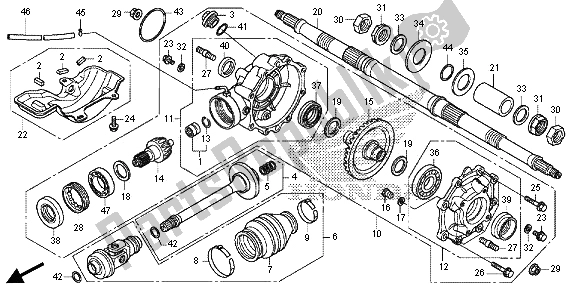

The technical drawing shows all original parts for the Rear Final Gear of the Honda TRX 420 FE Fourtrax Rancher 4X4 ES 2013. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Honda items, but they can also be replacement aftermarket items, which are suitable for the Rear Final Gear. These articles of course also fit on the Honda TRX 420 FE Fourtrax Rancher 4X4 ES 2013, but serve as a cheaper alternative than the original parts of Honda.
