All parts for the Left Crankcase Cover of the Honda VTX 1800C 2002

Here you can find all the spareparts that belong on the Left Crankcase Cover of your Honda VTX 1800C 2002.

All parts for the Left Crankcase Cover of the Honda VTX 1800C 2002
< Scroll to zoom >
#
Article
Description
Price
#1 11361MCHA00 Cover, l. crankcase Honda 11361MCHA00

Cover, l. crankcase Honda 11361MCHA00

€ 571,77 3 - 15 Business days
#3 11375MCH000 No description available at the moment Honda 11375MCH000

No description available at the moment Honda 11375MCH000

€ 35,50 3 - 15 Business days
#4 11380MCH000 No description available at the moment Honda 11380MCH000

No description available at the moment Honda 11380MCH000

€ 15,91 3 - 15 Business days
#5 11390MCH000 Stay comp. b, l. rr. cove Honda 11390MCH000

Stay comp. b, l. rr. cove Honda 11390MCH000

€ 16,74 3 - 15 Business days
#6 15650MCH000 Gauge, oil level Honda 15650MCH000

Gauge, oil level Honda 15650MCH000

€ 14,47 3 - 15 Business days
#7 22860MCH000 Cylinder assy., clutch slave Honda 22860MCH000

Cylinder assy., clutch slave Honda 22860MCH000

€ 93,90 3 - 15 Business days
#8 22863MJ8003 Piston, slave cylinder Honda 22863MJ8003

Piston, slave cylinder Honda 22863MJ8003

€ 28,28 3 - 15 Business days
#9 22864MB0003 Spring, slave cylinder Honda 22864MB0003

Spring, slave cylinder Honda 22864MB0003

€ 7,34 3 - 15 Business days
#10 22865MJ8003 Cup, slave cylinder Honda 22865MJ8003

Cup, slave cylinder Honda 22865MJ8003

€ 14,91 3 - 15 Business days
#11 35211443760 Clamp, switch cord Honda 35211443760

Clamp, switch cord Honda 35211443760

€ 5,00 3 - 15 Business days
#12 43352HC5971 Screw, bleeder (nissin) Honda 43352HC5971

Screw, bleeder (nissin) Honda 43352HC5971

€ 5,47 3 - 15 Business days
#13 43353461771 Cap, bleeder Honda 43353461771

Cap, bleeder Honda 43353461771

€ 6,84 3 - 15 Business days
#14 83551GE2000 Grommet, air cleaner case Honda 83551GE2000

Grommet, air cleaner case Honda 83551GE2000

€ 4,79 3 - 15 Business days
#15 90011KN8730 Bolt, socket, 6x60 Honda 90011KN8730

Bolt, socket, 6x60 Honda 90011KN8730

€ 4,66 3 - 15 Business days
#16 90020MBAD20 Bolt assy., special, Honda 90020MBAD20

Bolt assy., special, Honda 90020MBAD20

€ 7,53 3 - 15 Business days
#17 90032MCH000 Bolt, flange socket, 6x32 Honda 90032MCH000

Bolt, flange socket, 6x32 Honda 90032MCH000

€ 3,42 3 - 15 Business days
#18 90033MCH000 Bolt, flange socket, 6x45 Honda 90033MCH000

Bolt, flange socket, 6x45 Honda 90033MCH000

€ 3,42 3 - 15 Business days
#19 90080MG8000 Bolt, flange socket, 6x25 Honda 90080MG8000

Bolt, flange socket, 6x25 Honda 90080MG8000

€ 5,84 3 - 15 Business days
#20 90543MBA000 Rubber, mounting Honda 90543MBA000

Rubber, mounting Honda 90543MBA000

€ 3,33 3 - 15 Business days
#21 91204MB0013 Oil seal, 8x25x8(arai) Honda 91204MB0013

Oil seal, 8x25x8(arai) Honda 91204MB0013

€ 7,53 3 - 15 Business days
#22 91209MB0003 Oil seal, 8x18x5 Honda 91209MB0003

Oil seal, 8x18x5 Honda 91209MB0003

€ 5,47 3 - 15 Business days
#23 91307035000 O-ring Honda 91307035000

O-ring Honda 91307035000

€ 1,50 Not available
#23 91307035000 Oring, 18x3 Honda 91307035000

Oring, 18x3 Honda 91307035000

€ 2,74 3 - 15 Business days
#24 9405006000 Nut, flange, 6mm Honda 9405006000

Nut, flange, 6mm Honda 9405006000

€ 1,50 3 - 15 Business days
#25 9430108100 Dowel pin, 8x10 Honda 9430108100

Dowel pin, 8x10 Honda 9430108100

€ 3,26 3 - 15 Business days
#26 9430108140 Dowel pin, 8x14 Honda 9430108140

Dowel pin, 8x14 Honda 9430108140

€ 1,50 Not available
#26 9430108140 Dowel pin, 8x14 Honda 9430108140

Dowel pin, 8x14 Honda 9430108140

€ 2,74 3 - 15 Business days
#27 957010601400 Bolt, flange|6x14 Honda 957010601400

Bolt, flange|6x14 Honda 957010601400

€ 1,50 3 - 15 Business days

Servicing your Honda VTX 1800C?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Honda VTX 1800C, to be able to carry out the maintenance on your Honda VTX 1800C as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Honda VTX 1800C.


Find the parts while repairing your Honda!

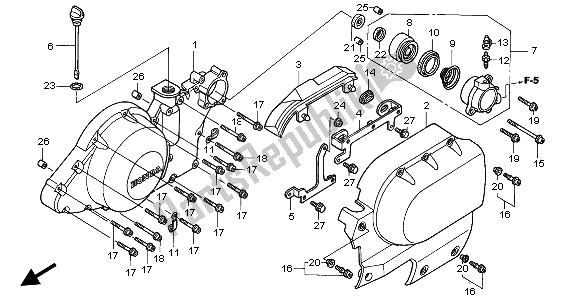

The technical drawing shows all original parts for the Left Crankcase Cover of the Honda VTX 1800C 2002. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Honda items, but they can also be replacement aftermarket items, which are suitable for the Left Crankcase Cover. These articles of course also fit on the Honda VTX 1800C 2002, but serve as a cheaper alternative than the original parts of Honda.
