All parts for the Rear Cushion of the Honda XR 650R 2007

Here you can find all the spareparts that belong on the Rear Cushion of your Honda XR 650R 2007.

All parts for the Rear Cushion of the Honda XR 650R 2007
< Scroll to zoom >
#
Article
Description
Price
#9 52427KZ4901 Rubber, bumper Honda 52427KZ4901

Rubber, bumper Honda 52427KZ4901

€ 19,69 3 - 5 Business days
#11 52429MBN671 Case comp., rod guide Honda 52429MBN671

Case comp., rod guide Honda 52429MBN671

€ 35,40 3 - 5 Business days
#13 52438KA3731 Nut, hex., 12mm Honda 52438KA3731

Nut, hex., 12mm Honda 52438KA3731

€ 4,19 3 - 5 Business days
#14 52451KZ4003 Bladder Honda 52451KZ4003

Bladder Honda 52451KZ4003

€ 28,83 3 - 5 Business days
#18 52463KZ4B00 Collar d, cushion Honda 52463KZ4B00

Collar d, cushion Honda 52463KZ4B00

€ 5,34 3 - 5 Business days
#20 52464KZ4B00 Collar d, cushion side Honda 52464KZ4B00

Collar d, cushion side Honda 52464KZ4B00

€ 5,78 3 - 5 Business days
#24 52486GBF830 Collar a, cushion upper Honda 52486GBF830

Collar a, cushion upper Honda 52486GBF830

€ 9,38 3 - 5 Business days
#25 52487GBF830 Collar b, cushion upper Honda 52487GBF830

Collar b, cushion upper Honda 52487GBF830

€ 8,31 3 - 5 Business days
#26 87516KZ1600 Label, rr. damper warning Honda 87516KZ1600

Label, rr. damper warning Honda 87516KZ1600

€ 12,93 3 - 5 Business days
#27 90126MBN670 Bolt, socket, 10x48 Honda 90126MBN670

Bolt, socket, 10x48 Honda 90126MBN670

€ 6,24 3 - 5 Business days
#31 90153KZ4710 Bolt, cushion lower, 10x43.5 Honda 90153KZ4710

Bolt, cushion lower, 10x43.5 Honda 90153KZ4710

€ 7,68 3 - 5 Business days
#32 90304GE8003 Nut, u, 10mm (fuse rashi) Honda 90304GE8003

Nut, u, 10mm (fuse rashi) Honda 90304GE8003

€ 6,26 3 - 5 Business days
#32 90304GBL003 Nut, u, flange. 10mm Honda 90304GBL003

Nut, u, flange. 10mm Honda 90304GBL003

€ 6,26 3 - 5 Business days
#33 90306KBP901 Nut, u, 12mm Honda 90306KBP901

Nut, u, 12mm Honda 90306KBP901

€ 7,96 3 - 5 Business days
#33 90306GAB711 Nut,hex,12mm Honda 90306GAB711

Nut,hex,12mm Honda 90306GAB711

€ 9,08 3 - 5 Business days
#34 90306KCS690 Nut,flange spl,12 Honda 90306KCS690

Nut,flange spl,12 Honda 90306KCS690

€ 6,86 3 - 5 Business days
#34 90306KCH780 Nut,spl,12mm Honda 90306KCH780

Nut,spl,12mm Honda 90306KCH780

€ 6,86 3 - 5 Business days
#34 90306KF0000 Nut, flange, 12mm Honda 90306KF0000

Nut, flange, 12mm Honda 90306KF0000

€ 6,86 3 - 5 Business days
#34 90306KPL900 Nut, special flange, 12mm Honda 90306KPL900

Nut, special flange, 12mm Honda 90306KPL900

€ 6,86 3 - 5 Business days
#34 90306KTE911 Nut, flange special, 12mm Honda 90306KTE911

Nut, flange special, 12mm Honda 90306KTE911

€ 6,86 3 - 5 Business days
#34 90306KF0003 Nut, flange, 12mm Honda 90306KF0003

Nut, flange, 12mm Honda 90306KF0003

€ 7,10 3 - 5 Business days
#35 90306KZ4711 Nut, u, 10mm Honda 90306KZ4711

Nut, u, 10mm Honda 90306KZ4711

€ 5,19 3 - 5 Business days
#36 90504SF4000 Washer, plain, 12mm Honda 90504SF4000

Washer, plain, 12mm Honda 90504SF4000

€ 7,43 3 - 5 Business days
#37 91072MY1005 Bearing, needle, 20x26x20 Honda 91072MY1005

Bearing, needle, 20x26x20 Honda 91072MY1005

€ 42,29 3 - 5 Business days
#38 91074KZ4B01 Bearing, needle, 19x26x15 Honda 91074KZ4B01

Bearing, needle, 19x26x15 Honda 91074KZ4B01

€ 42,19 3 - 5 Business days
#39 91077GS2702 Bearing, needle, 16x22x12 Honda 91077GS2702

Bearing, needle, 16x22x12 Honda 91077GS2702

€ 43,03 3 - 5 Business days
#40 91254KS6003 Dust seal, 20x26x4.5 (arai) Honda 91254KS6003

Dust seal, 20x26x4.5 (arai) Honda 91254KS6003

€ 6,90 3 - 5 Business days
#40 91254MAKF00 Dust seal,20x26x4 Honda 91254MAKF00

Dust seal,20x26x4 Honda 91254MAKF00

€ 11,10 3 - 5 Business days
#40 91254MCA870 Dust seal,20x26x4 Honda 91254MCA870

Dust seal,20x26x4 Honda 91254MCA870

€ 11,10 3 - 5 Business days
#41 91351GS2701 Dust seal, rr. cushion up Honda 91351GS2701

Dust seal, rr. cushion up Honda 91351GS2701

€ 6,32 3 - 5 Business days
#42 91351KZ4B01 Dust seal, 17x26x3 Honda 91351KZ4B01

Dust seal, 17x26x3 Honda 91351KZ4B01

€ 15,66 3 - 5 Business days
#43 87516KZ1881 Label, rr. damper warning (french) Honda 87516KZ1881

Label, rr. damper warning (french) Honda 87516KZ1881

€ 12,77 3 - 5 Business days

Servicing your Honda XR 650R?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Honda XR 650R, to be able to carry out the maintenance on your Honda XR 650R as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Honda XR 650R.


Find the parts while repairing your Honda!

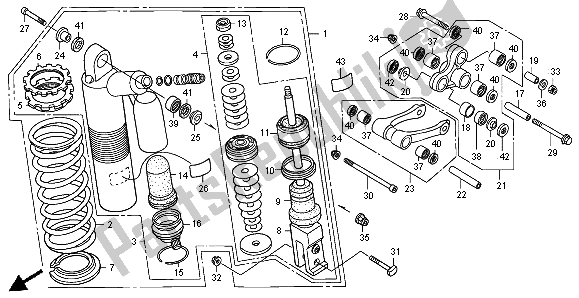

The technical drawing shows all original parts for the Rear Cushion of the Honda XR 650R 2007. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Honda items, but they can also be replacement aftermarket items, which are suitable for the Rear Cushion. These articles of course also fit on the Honda XR 650R 2007, but serve as a cheaper alternative than the original parts of Honda.
