ktm, 58512099344 eng.protector carbon cpl. 2002, 58553016144 eng.protector mounting cpl. 02, 58538010000 rubber grommet 20x11/m6x18 01, 58512099340 engine protector carbon 02, 43205262000 rubber grommet 30x15-m8x12-(1), 0912080123 ah screw din912 m8x12, 58562093051 tank holder fr. r/s outside 01, 58562092051 tank holder fr. l/s outside 01, 58562092050 tank holder fr.r/s inside 01, 58562093050 tank holder fr.l/s inside 01, 0931101103 hh screw din0931-m10x110, 0015080203 hh collar screw m 8x20 ws=10, 58308045000 special washer 7x12,5x20 black, 0991060163 flat head scr. din7991-m 6x16, 49009082000 flanged hex nut din 6927 m10 ws15, 58512099330 pc-outer hull rallye lc4 02, 54610052000 sprocket screw-ah m8x20 ws=6, 58512099360 stone guard ral. set 02, 58303061000 special washer alu 8 x 24 mm, 54510052100 sprocket screw-ah m8x26 ws=6, 0985080003 self locking nut din0985-m 8, 0934060003 hex nut din 934 m6, 0985060003 self lock. nut din0985-m 6, 58512099341 brace plate front 02, 58512099342 brace plate rear 02, 0991080203 flat head screw din7991 m8x20, 43205262000 rubber grommet 30x15-m8x12-(1), 54603048000 range change metal nut m8, 36003014000 lock washer 8mm, 0985050003 self locking nut din0985-m 5, 0125050003 washer din0125-a 5,3, 58512099365 lintil head screw m5x12 ah 02, 58553019000 eng.protect.br.front frame 02, 58553016100 engine protector front ral 02, 58553018000 eng.protector rear to plug 02, 58553017000 engine protector rear ral 02, 58512099351 watert.carb.eng.prot. r/s 02, 58512099350 watert.carb.eng.prot. l/s 02, 58030020000 plug m 24x3, 0770160030 o-ring 16,00x3,00 nbr 70, 54605068000 exhaust bracket rubber black, 0933080103 hh screw din0933-m 8x10, 0797080003 toothlock washer din6797-j 8,4

All parts for the Engine Guard of the KTM 660 Rallye Factory Repl Europe 2005

Here you can find all the spareparts that belong on the Engine Guard of your KTM 660 Rallye Factory Repl Europe 2005.

All original and replacement parts for your KTM 660 Rallye Factory Repl Europe 2005.
All parts for the Engine Guard of the KTM 660 Rallye Factory Repl Europe 2005
< Scroll to zoom >
#
Article
Description
Price
#6 58538010000 Rubber grommet 20x11/m6x18 01 KTM 58538010000

Rubber grommet 20x11/m6x18 01 KTM 58538010000

 € 7,80 4 - 7 Business days
#10 0912080123 Ah screw din912 m8x12 KTM 0912080123

Ah screw din912 m8x12 KTM 0912080123

 € 2,18 4 - 7 Business days
#16 0931101103 Hh screw din0931-m10x110 KTM 0931101103

Hh screw din0931-m10x110 KTM 0931101103

 € 4,90 4 - 7 Business days
#21 58308045000 Special washer 7x12,5x20 black KTM 58308045000

Special washer 7x12,5x20 black KTM 58308045000

 € 3,63 4 - 7 Business days
#22 0991060163 Flat head scr. din7991-m 6x16 KTM 0991060163

Flat head scr. din7991-m 6x16 KTM 0991060163

 € 1,33 4 - 7 Business days
#23 49009082000 Flanged hex nut din 6927 m10 ws15 KTM 49009082000

Flanged hex nut din 6927 m10 ws15 KTM 49009082000

 € 2,00 4 - 7 Business days
#27 58303061000 Special washer alu 8 x 24 mm KTM 58303061000

Special washer alu 8 x 24 mm KTM 58303061000

 € 5,75 4 - 7 Business days
#30 0985080003 Self locking nut din0985-m 8 KTM 0985080003

Self locking nut din0985-m 8 KTM 0985080003

 € 1,33 4 - 7 Business days
#31 0934060003 Hex nut din 934 m6 KTM 0934060003

Hex nut din 934 m6 KTM 0934060003

 € 1,09 4 - 7 Business days
#33 0985060003 Self lock. nut din0985-m 6 KTM 0985060003

Self lock. nut din0985-m 6 KTM 0985060003

 € 1,33 4 - 7 Business days
#49 54603048000 Range change metal nut m8 KTM 54603048000

Range change metal nut m8 KTM 54603048000

 € 3,69 4 - 7 Business days
#68 36003014000 Lock washer 8mm KTM 36003014000

Lock washer 8mm KTM 36003014000

 € 1,88 4 - 7 Business days
#74 0985050003 Self locking nut din0985-m 5 KTM 0985050003

Self locking nut din0985-m 5 KTM 0985050003

 € 1,33 4 - 7 Business days
#75 0125050003 Washer din0125-a 5,3 KTM 0125050003

Washer din0125-a 5,3 KTM 0125050003

 € 0,97 4 - 7 Business days
#87 0770160030 O-ring 16,00x3,00 nbr 70 KTM 0770160030

O-ring 16,00x3,00 nbr 70 KTM 0770160030

 € 1,33 4 - 7 Business days
#89 0933080103 Hh screw din0933-m 8x10 KTM 0933080103

Hh screw din0933-m 8x10 KTM 0933080103

 € 2,18 4 - 7 Business days
#90 0797080003 Toothlock washer din6797-j 8,4 KTM 0797080003

Toothlock washer din6797-j 8,4 KTM 0797080003

 € 0,97 4 - 7 Business days

Servicing your KTM 660 Rallye Factory Repl Europe?

Then you have come to the right place at partsrepublik! We have a wide range of products for your KTM 660 Rallye Factory Repl Europe, to be able to carry out the maintenance on your KTM 660 Rallye Factory Repl Europe as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your KTM 660 Rallye Factory Repl Europe.

KTM 660 Rallye Factory Repl Europe parts KTM 660 Rallye Factory Repl Europe parts

Find the parts while repairing your Ktm!

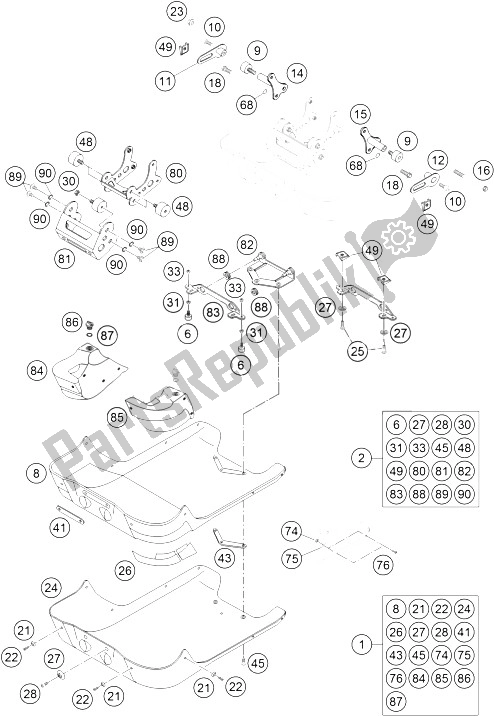

The technical drawing shows all original parts for the Engine Guard of the KTM 660 Rallye Factory Repl Europe 2005. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Ktm items, but they can also be replacement aftermarket items, which are suitable for the Engine Guard. These articles of course also fit on the KTM 660 Rallye Factory Repl Europe 2005, but serve as a cheaper alternative than the original parts of Ktm.
