suzuki, 3510048GD0999 headlamp assy, 3517314G00 cover, 3611848G00 cord, 0947112060 bulb,12v60/55w,, 4050300001470 bulb,12v60/55w,, 0947112216 bulb (12v5w), 0913605062 screw, 0932009039 cushion, 0932009506 cushion, 3595014A10 reflector,refle, 0911906104 bolt

All parts for the Headlamp Assy (vz800 E24) of the Suzuki VZ 800 Intruder 2011

Here you can find all the spareparts that belong on the Headlamp Assy (vz800 E24) of your Suzuki VZ 800 Intruder 2011.

All parts for the Headlamp Assy (vz800 E24) of the Suzuki VZ 800 Intruder 2011
< Scroll to zoom >
#
Article
Description
Price
#1 3510048GD0999 Headlamp assy Suzuki 3510048GD0999

Headlamp assy Suzuki 3510048GD0999

€ 359,39 3 - 5 Business days
#2 3517314G00 Cover Suzuki 3517314G00

Cover Suzuki 3517314G00

€ 13,69 3 - 5 Business days
#3 3611848G00 Cord Suzuki 3611848G00

Cord Suzuki 3611848G00

€ 18,38 3 - 5 Business days
#4 4050300001470 H4,60/55w, p43t Suzuki 4050300001470

H4,60/55w, p43t Suzuki 4050300001470

€ 6,17 3 - 5 Business days
#4 0947112060 Bulb,12v60/55w, Suzuki 0947112060

Bulb,12v60/55w, Suzuki 0947112060

€ 62,80 3 - 5 Business days
#5 0947112216 Bulb (12v5w) Suzuki 0947112216

Bulb (12v5w) Suzuki 0947112216

€ 5,90 3 - 5 Business days
#6 0913605062 Screw Suzuki 0913605062

Screw Suzuki 0913605062

€ 2,60 3 - 5 Business days
#7 0932009059 Cushion Suzuki 0932009059

Cushion Suzuki 0932009059

€ 6,87 3 - 5 Business days
#7 0932009039 Cushion Suzuki 0932009039

Cushion Suzuki 0932009039

€ 6,87 3 - 5 Business days
#8 0932009506 Cushion Suzuki 0932009506

Cushion Suzuki 0932009506

€ 2,30 3 - 5 Business days
#10 0911906104 Bolt Suzuki 0911906104

Bolt Suzuki 0911906104

€ 11,50 3 - 5 Business days

Servicing your Suzuki VZ 800 Intruder?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Suzuki VZ 800 Intruder, to be able to carry out the maintenance on your Suzuki VZ 800 Intruder as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Suzuki VZ 800 Intruder.


Find the parts while repairing your Suzuki!

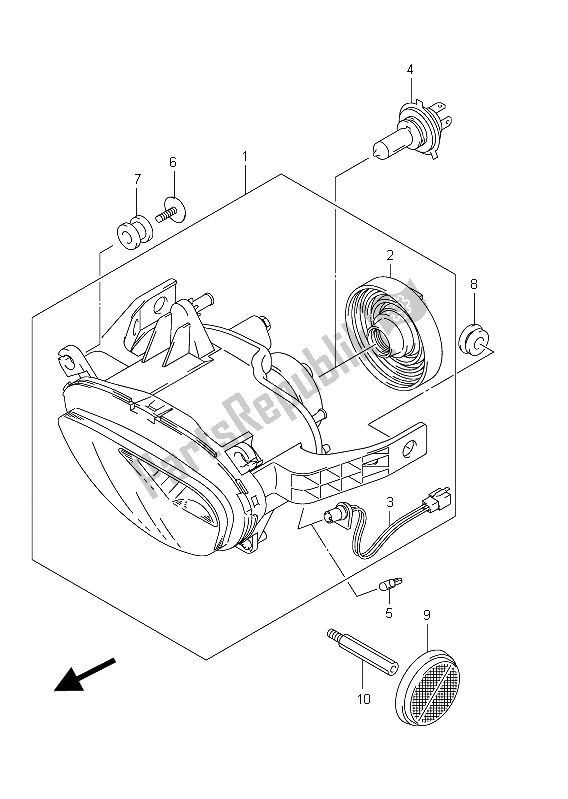

The technical drawing shows all original parts for the Headlamp Assy (vz800 E24) of the Suzuki VZ 800 Intruder 2011. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Suzuki items, but they can also be replacement aftermarket items, which are suitable for the Headlamp Assy (vz800 E24). These articles of course also fit on the Suzuki VZ 800 Intruder 2011, but serve as a cheaper alternative than the original parts of Suzuki.
