All parts for the Crankcase of the Triumph Speed Triple R UP TO VIN 735436 1050 2012 - 2016

Here you can find all the spareparts that belong on the Crankcase of your Triumph Speed Triple R UP TO VIN 735436 1050 2012 - 2016.

All original and replacement parts for your Triumph Speed Triple R UP TO VIN 735436 1050 2012 - 2016.
All parts for the Crankcase of the Triumph Speed Triple R UP TO VIN 735436 1050 2012 - 2016
< Scroll to zoom >
#
Article
Description
Price
#1 T1169998 Crankcase assy, spares, crinkle black Triumph T1169998

Crankcase assy, spares, crinkle black Triumph T1169998

 € 5.465,00 5 - 8 Business days
#2 T3000103 Dowel, hollow, 12x14 Triumph T3000103

Dowel, hollow, 12x14 Triumph T3000103

 € 4,31 Quantity needed: 3 | 5 - 8 Business days
#3 T3550542 Washer, cu, od12.5, id6.4, 0.8 Triumph T3550542

Washer, cu, od12.5, id6.4, 0.8 Triumph T3550542

 € 0,98 5 - 8 Business days
#4 T3205062 Bolt hhf lghtd m6 x 12 slv Triumph T3205062

Bolt hhf lghtd m6 x 12 slv Triumph T3205062

 € 4,33 5 - 8 Business days
#5 T3000101 Dowel, hollow, 8x14 Triumph T3000101

Dowel, hollow, 8x14 Triumph T3000101

 € 4,04 Quantity needed: 2 | 5 - 8 Business days
#7 T3500208 Circlip, int, 32x2 Triumph T3500208

Circlip, int, 32x2 Triumph T3500208

 € 0,94 5 - 8 Business days
#8 T3600812 O ring Triumph T3600812

O ring Triumph T3600812

 € 1,57 5 - 8 Business days
#9 T3450091 Plug, dia 14mm alum Triumph T3450091

Plug, dia 14mm alum Triumph T3450091

 € 2,53 Quantity needed: 3 | 5 - 8 Business days
#10 T1180025 Retainer, bearing, pressing Triumph T1180025

Retainer, bearing, pressing Triumph T1180025

 € 1,74 5 - 8 Business days
#11 T3051062 Screw, cap/hd, m6x1x12, enc, raw Triumph T3051062

Screw, cap/hd, m6x1x12, enc, raw Triumph T3051062

 € 1,43 Quantity needed: 2 | 5 - 8 Business days
#12 T1161065 Plate assy, breather Triumph T1161065

Plate assy, breather Triumph T1161065

 € 13,00 5 - 8 Business days
#13 T1161066 Gasket, breather plate Triumph T1161066

Gasket, breather plate Triumph T1161066

 € 9,55 5 - 8 Business days
#14 T1160262 Hose, breather drain Triumph T1160262

Hose, breather drain Triumph T1160262

 € 5,29 5 - 8 Business days
#15 T3700035 Clip, breather pipe Triumph T3700035

Clip, breather pipe Triumph T3700035

 € 0,75 5 - 8 Business days
#16 T3331042 Screw, pan/hd, tx, m6x1.0x12, enc Triumph T3331042

Screw, pan/hd, tx, m6x1.0x12, enc Triumph T3331042

 € 1,48 Quantity needed: 7 | 5 - 8 Business days
#17 T1211050 Oil feed assy gearbox Triumph T1211050

Oil feed assy gearbox Triumph T1211050

 € 52,01 5 - 8 Business days
#18 T1210242 Bolt, banjo, m6x1.0x20 Triumph T1210242

Bolt, banjo, m6x1.0x20 Triumph T1210242

 € 11,00 Quantity needed: 3 | 5 - 8 Business days
#19 T3550542 Washer, cu, od12.5, id6.4, 0.8 Triumph T3550542

Washer, cu, od12.5, id6.4, 0.8 Triumph T3550542

 € 0,98 Quantity needed: 3 | 5 - 8 Business days
#20 T1160268 Spigot, od 14.0mm Triumph T1160268

Spigot, od 14.0mm Triumph T1160268

 € 5,95 5 - 8 Business days
#21 T3100040 Stud m6 x 35 enc Triumph T3100040

Stud m6 x 35 enc Triumph T3100040

 € 1,90 5 - 8 Business days

Servicing your Triumph Speed Triple R UP TO VIN 735436 1050?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Triumph Speed Triple R UP TO VIN 735436 1050, to be able to carry out the maintenance on your Triumph Speed Triple R UP TO VIN 735436 1050 as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Triumph Speed Triple R UP TO VIN 735436 1050.

Triumph Speed Triple R UP TO VIN 735436 1050 parts Triumph Speed Triple R UP TO VIN 735436 1050 parts

Find the parts while repairing your Triumph!

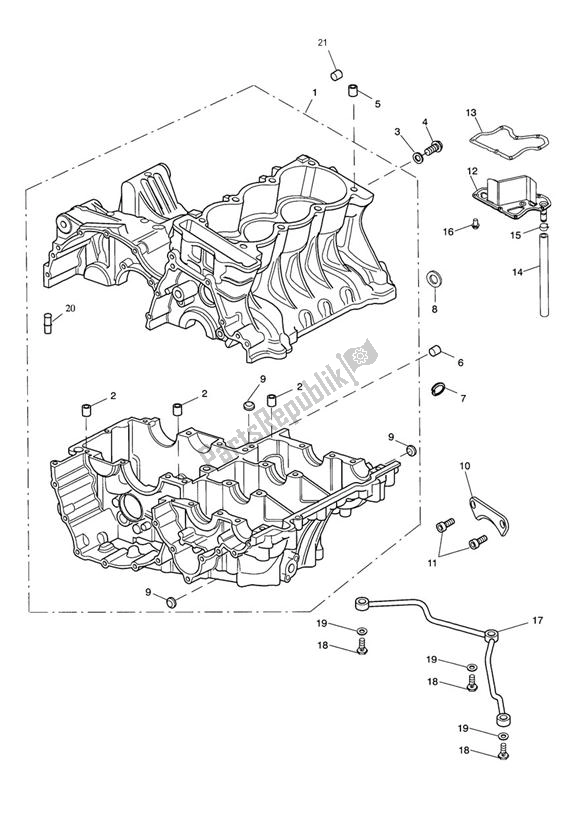

The technical drawing shows all original parts for the Crankcase of the Triumph Speed Triple R UP TO VIN 735436 1050 2012 - 2016. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Triumph items, but they can also be replacement aftermarket items, which are suitable for the Crankcase. These articles of course also fit on the Triumph Speed Triple R UP TO VIN 735436 1050 2012 - 2016, but serve as a cheaper alternative than the original parts of Triumph.
