triumph, T1100999 crankshaft assy, T3800120 bearing, n/roller, T1110470 conrod assy, T1110451 bolt, conrod, m8x27x0.75, T1110452 dowel, 3.0 x 5.0, T1110402 bearing shell, conrod, T1110401 bearing shell, conrod, T1120400 circlip, T1121500 piston assy, T1120431 piston, circlip, assy, T1121501 piston & circlip assy, T1121675 gudgeon pin, dia 16.0, T1120400 circlip, T1120515 piston ring set, T1121175 piston ring set dia 74.0, T1160073 liner, cyl, dia 74, T1166666 liner cyl iron 74mm, T1140501 sprocket camdrive 17t, T1140500 sprocket, cam drive, T1100065 spacer, hex, T3050161 screw, cap/hd, m8x1.25x20, raw, T1100808 key, crankshaft

All parts for the Crank Shaft Connecting Rod Piston of the Triumph Street Triple R UP TO VIN 560476 675 2008 - 2012

Here you can find all the spareparts that belong on the Crank Shaft Connecting Rod Piston of your Triumph Street Triple R UP TO VIN 560476 675 2008 - 2012.

All original and replacement parts for your Triumph Street Triple R UP TO VIN 560476 675 2008 - 2012.
All parts for the Crank Shaft Connecting Rod Piston of the Triumph Street Triple R UP TO VIN 560476 675 2008 - 2012
< Scroll to zoom >
#
Article
Description
Price
#2 T3800120 Bearing, n/roller Triumph T3800120

Bearing, n/roller Triumph T3800120

 € 98,00 5 - 8 Business days
#3 T1110470 Conrod assy Triumph T1110470

Conrod assy Triumph T1110470

 € 275,00 Quantity needed: 3 | 5 - 8 Business days
#4 T1110451 Bolt, conrod, m8x27x0.75 Triumph T1110451

Bolt, conrod, m8x27x0.75 Triumph T1110451

 € 26,00 Quantity needed: 6 | 5 - 8 Business days
#5 T1110452 Dowel, 3.0 x 5.0 Triumph T1110452

Dowel, 3.0 x 5.0 Triumph T1110452

 € 3,07 Quantity needed: 6 | 5 - 8 Business days
#6 T1110401 Bearing shell, conrod Triumph T1110401

Bearing shell, conrod Triumph T1110401

 € 13,00 5 - 8 Business days
#6 T1110402 Bearing shell, conrod Triumph T1110402

Bearing shell, conrod Triumph T1110402

 € 13,00 5 - 8 Business days
#7 T1120400 Circlip Triumph T1120400

Circlip Triumph T1120400

 € 2,27 Quantity needed: 3 | 5 - 8 Business days
#8 T1120431 Piston, circlip, assy Triumph T1120431

Piston, circlip, assy Triumph T1120431

 € 305,00 Quantity needed: 3 | 5 - 8 Business days
#9 T1121675 Gudgeon pin, dia 16.0 Triumph T1121675

Gudgeon pin, dia 16.0 Triumph T1121675

 € 40,99 Quantity needed: 3 | 5 - 8 Business days
#10 T1120400 Circlip Triumph T1120400

Circlip Triumph T1120400

 € 2,27 Quantity needed: 6 | 5 - 8 Business days
#11 T1121175 Piston ring set dia 74.0 Triumph T1121175

Piston ring set dia 74.0 Triumph T1121175

 € 120,00 Quantity needed: 3 | 5 - 8 Business days
#11 T1120515 Piston ring set Triumph T1120515

Piston ring set Triumph T1120515

 € 125,01 Quantity needed: 3 | 5 - 8 Business days
#12 T1166666 Liner cyl iron 74mm Triumph T1166666

Liner cyl iron 74mm Triumph T1166666

 € 255,00 Quantity needed: 3 | 5 - 8 Business days
#12 T1160073 Liner, cyl, dia 74 Triumph T1160073

Liner, cyl, dia 74 Triumph T1160073

 € 270,00 Quantity needed: 3 | 5 - 8 Business days
#13 T1140501 Sprocket camdrive 17t Triumph T1140501

Sprocket camdrive 17t Triumph T1140501

 € 110,00 5 - 8 Business days
#13 T1140500 Sprocket, cam drive Triumph T1140500

Sprocket, cam drive Triumph T1140500

 € 115,00 5 - 8 Business days
#14 T1100065 Spacer, hex Triumph T1100065

Spacer, hex Triumph T1100065

 € 15,00 5 - 8 Business days
#15 T3050161 Screw, cap/hd, m8x1.25x20, raw Triumph T3050161

Screw, cap/hd, m8x1.25x20, raw Triumph T3050161

 € 0,94 5 - 8 Business days
#16 T1100808 Key, crankshaft Triumph T1100808

Key, crankshaft Triumph T1100808

 € 16,00 5 - 8 Business days

Servicing your Triumph Street Triple R UP TO VIN 560476 675?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Triumph Street Triple R UP TO VIN 560476 675, to be able to carry out the maintenance on your Triumph Street Triple R UP TO VIN 560476 675 as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Triumph Street Triple R UP TO VIN 560476 675.

Triumph Street Triple R UP TO VIN 560476 675 parts Triumph Street Triple R UP TO VIN 560476 675 parts

Find the parts while repairing your Triumph!

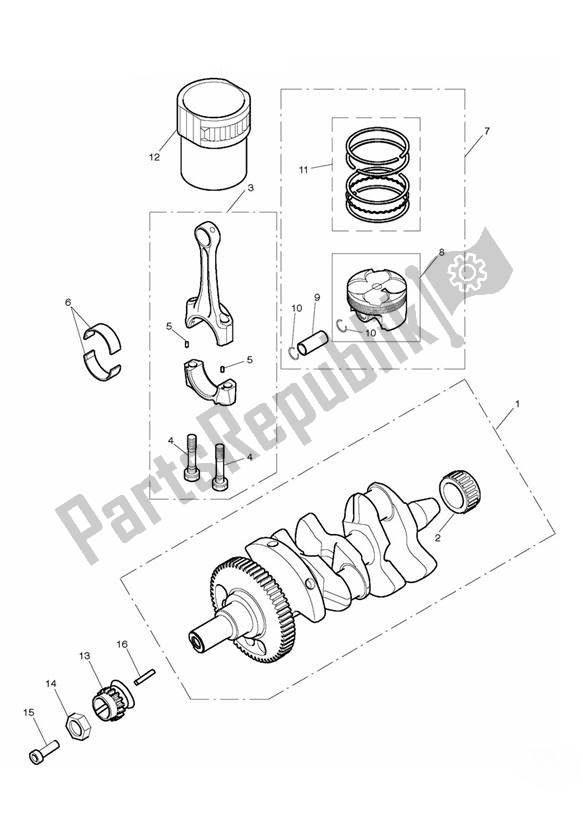

The technical drawing shows all original parts for the Crank Shaft Connecting Rod Piston of the Triumph Street Triple R UP TO VIN 560476 675 2008 - 2012. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Triumph items, but they can also be replacement aftermarket items, which are suitable for the Crank Shaft Connecting Rod Piston. These articles of course also fit on the Triumph Street Triple R UP TO VIN 560476 675 2008 - 2012, but serve as a cheaper alternative than the original parts of Triumph.
