triumph, T2015427 rear wheel assy, grey, T2003515 spacer wheel 20 127.2, T3800703 bearing, ball, 20 47 14, T3600701 seal, oil, dc 28 47 7, T3500402 circlip, int dia 47, T2006615 valve assy, alum, 90, silver, T2010601 sprocket carrier assy, grey, T3800029 bearing, ball, 25 x 52 x 15, T3600073 seal, oil, 35 52 6, T3500203 circlip, int, 52x2, T2012144 stud, sprocket carrier, T2010630 bearing, ring, T2010492 spacer, stepped, T2010650 rubber, cush drive, T2010647 spacer, tube, 35 20, 1 12, 5, T2012048 spacer, top hat, 22.4 long, T2015060 rear wheel spindle, T3350118 locknut, plain, m18 x 1.5,, T3555035 washer, 19x34x3, T2010700 block, chain adj, lh, T2012016 chain adjuster block, lh, T2010338 chain adjuster block rh, T2010800 block, chain adj, rh, T3350250 locknut, T2015075 final drive chain 122l, T2017255 525 chain,122l, split, spares, T2010553 sprocket rear 50t, T2017250 chain & sprocket kit 122/50/16, T2000977 balance weight, wheel, zinc

All parts for the Final Drive Rear of the Triumph Tiger 800 2010 - 2020

Here you can find all the spareparts that belong on the Final Drive Rear of your Triumph Tiger 800 2010 - 2020.

All original and replacement parts for your Triumph Tiger 800 2010 - 2020.
All parts for the Final Drive Rear of the Triumph Tiger 800 2010 - 2020
< Scroll to zoom >
#
Article
Description
Price
#1 T2015427 Rear wheel assy, grey Triumph T2015427

Rear wheel assy, grey Triumph T2015427

 € 1.095,00 5 - 8 Business days
#3 T3800703 Bearing, ball, 20 47 14 Triumph T3800703

Bearing, ball, 20 47 14 Triumph T3800703

 € 46,00 Quantity needed: 2 | 5 - 8 Business days
#4 T3600701 Seal, oil, dc 28 47 7 Triumph T3600701

Seal, oil, dc 28 47 7 Triumph T3600701

 € 26,00 5 - 8 Business days
#5 T3500402 Circlip, int dia 47 Triumph T3500402

Circlip, int dia 47 Triumph T3500402

 € 7,41 5 - 8 Business days
#6 T2006615 Valve assy, alum, 90, silver Triumph T2006615

Valve assy, alum, 90, silver Triumph T2006615

 € 17,00 5 - 8 Business days
#7 T2010601 Sprocket carrier assy, grey Triumph T2010601

Sprocket carrier assy, grey Triumph T2010601

 € 700,00 5 - 8 Business days
#8 T3800029 Bearing, ball, 25 x 52 x 15 Triumph T3800029

Bearing, ball, 25 x 52 x 15 Triumph T3800029

 € 12,00 5 - 8 Business days
#9 T3600073 Seal, oil, 35 52 6 Triumph T3600073

Seal, oil, 35 52 6 Triumph T3600073

 € 26,00 5 - 8 Business days
#10 T3500203 Circlip, int, 52x2 Triumph T3500203

Circlip, int, 52x2 Triumph T3500203

 € 17,00 5 - 8 Business days
#11 T2012144 Stud, sprocket carrier Triumph T2012144

Stud, sprocket carrier Triumph T2012144

 € 7,48 Quantity needed: 6 | 5 - 8 Business days
#12 T2010630 Bearing, ring Triumph T2010630

Bearing, ring Triumph T2010630

 € 57,00 5 - 8 Business days
#13 T2010492 Spacer, stepped Triumph T2010492

Spacer, stepped Triumph T2010492

 € 19,00 5 - 8 Business days
#14 T2010650 Rubber, cush drive Triumph T2010650

Rubber, cush drive Triumph T2010650

 € 98,00 5 - 8 Business days
#15 T2010647 Spacer, tube, 35 20, 1 12, 5 Triumph T2010647

Spacer, tube, 35 20, 1 12, 5 Triumph T2010647

 € 7,74 5 - 8 Business days
#16 T2012048 Spacer, top hat, 22.4 long Triumph T2012048

Spacer, top hat, 22.4 long Triumph T2012048

 € 12,00 5 - 8 Business days
#17 T2015060 Rear wheel spindle Triumph T2015060

Rear wheel spindle Triumph T2015060

 € 98,00 5 - 8 Business days
#18 T3350118 Locknut, plain, m18 x 1.5, Triumph T3350118

Locknut, plain, m18 x 1.5, Triumph T3350118

 € 12,00 5 - 8 Business days
#19 T3555035 Washer, 19x34x3 Triumph T3555035

Washer, 19x34x3 Triumph T3555035

 € 1,17 5 - 8 Business days
#20 T2012016 Adjuster, rear wheel, lh Triumph T2012016

Adjuster, rear wheel, lh Triumph T2012016

 € 18,00 5 - 8 Business days
#20 T2010700 Block, chain adj, lh Triumph T2010700

Block, chain adj, lh Triumph T2010700

 € 46,00 5 - 8 Business days
#20 T2010700 Block, chain adj, lh Triumph T2010700

Block, chain adj, lh Triumph T2010700

 € 46,00 5 - 8 Business days
#21 T2010800 Chain adjuster block, rh Triumph T2010800

Chain adjuster block, rh Triumph T2010800

 € 46,00 5 - 8 Business days
#22 T3350250 Locknut Triumph T3350250

Locknut Triumph T3350250

 € 4,42 Quantity needed: 6 | 5 - 8 Business days
#23 T2015075 Final drive chain 122l Triumph T2015075

Final drive chain 122l Triumph T2015075

 € 144,99 5 - 8 Business days
#23 T2017255 525 chain,122l, split, spares Triumph T2017255

525 chain,122l, split, spares Triumph T2017255

 € 144,99 5 - 8 Business days
#24 T2010553 Sprocket rear 50t Triumph T2010553

Sprocket rear 50t Triumph T2010553

 € 40,99 5 - 8 Business days
#25 T2017250 Chain & sprocket kit 122/50/16 Triumph T2017250

Chain & sprocket kit 122/50/16 Triumph T2017250

 € 200,00 5 - 8 Business days
#26 T2000977 Balance weight, wheel, zinc Triumph T2000977

Balance weight, wheel, zinc Triumph T2000977

 € 12,00 5 - 8 Business days

Servicing your Triumph Tiger 800?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Triumph Tiger 800, to be able to carry out the maintenance on your Triumph Tiger 800 as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Triumph Tiger 800.

Triumph Tiger 800 parts Triumph Tiger 800 parts

Find the parts while repairing your Triumph!

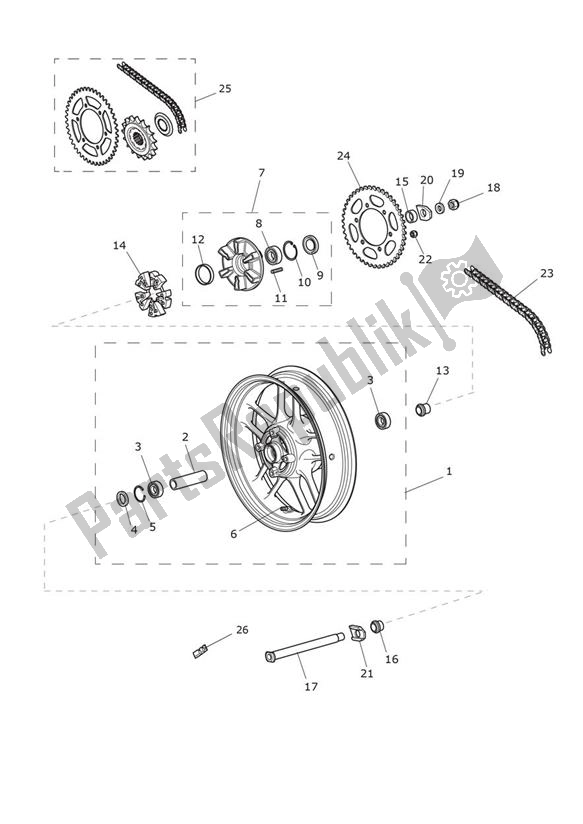

The technical drawing shows all original parts for the Final Drive Rear of the Triumph Tiger 800 2010 - 2020. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Triumph items, but they can also be replacement aftermarket items, which are suitable for the Final Drive Rear. These articles of course also fit on the Triumph Tiger 800 2010 - 2020, but serve as a cheaper alternative than the original parts of Triumph.
