All parts for the Swingarm of the Triumph Tiger 800 XC 2010 - 2020

Here you can find all the spareparts that belong on the Swingarm of your Triumph Tiger 800 XC 2010 - 2020.

All original and replacement parts for your Triumph Tiger 800 XC 2010 - 2020.
All parts for the Swingarm of the Triumph Tiger 800 XC 2010 - 2020
< Scroll to zoom >
#
Article
Description
Price
#1 T2052508 Kit swingarm spares assembly Triumph T2052508

Kit swingarm spares assembly Triumph T2052508

 € 1.630,00 5 - 8 Business days
#2 T3330644 Screw h/hd m8 x 75 slv Triumph T3330644

Screw h/hd m8 x 75 slv Triumph T3330644

 € 1,33 Quantity needed: 2 | 5 - 8 Business days
#3 T3350303 Nut, m8x1.25, slv Triumph T3350303

Nut, m8x1.25, slv Triumph T3350303

 € 0,85 Quantity needed: 2 | 5 - 8 Business days
#4 T2051750 Chainguard moulded Triumph T2051750

Chainguard moulded Triumph T2051750

 € 67,00 5 - 8 Business days
#5 T3332666 Screw- vin 89737 or higher-m6 x 20mm Triumph T3332666

Screw- vin 89737 or higher-m6 x 20mm Triumph T3332666

 € 4,42 Quantity needed: 3 | 5 - 8 Business days
#6 T2050460 Spindle, swingarm Triumph T2050460

Spindle, swingarm Triumph T2050460

 € 105,00 5 - 8 Business days
#7 T3600162 Oil seal 32 25 4 Triumph T3600162

Oil seal 32 25 4 Triumph T3600162

 € 8,39 Quantity needed: 4 | 5 - 8 Business days
#8 T3800014 Bearing needle 2526 Triumph T3800014

Bearing needle 2526 Triumph T3800014

 € 15,00 Quantity needed: 2 | 5 - 8 Business days
#9 T2052012 Ground sleeve Triumph T2052012

Ground sleeve Triumph T2052012

 € 13,35 Quantity needed: 2 | 5 - 8 Business days
#10 T2054562 Bush moulded Triumph T2054562

Bush moulded Triumph T2054562

 € 7,78 Quantity needed: 2 | 5 - 8 Business days
#11 T3350155 Locknut, m16, thin Triumph T3350155

Locknut, m16, thin Triumph T3350155

 € 11,00 5 - 8 Business days
#12 T3551240 Washer, m16 x 34 x 3 Triumph T3551240

Washer, m16 x 34 x 3 Triumph T3551240

 € 2,59 5 - 8 Business days
#13 T2051710 Spares kit rubbing strip Triumph T2051710

Spares kit rubbing strip Triumph T2051710

 € 77,00 5 - 8 Business days
#14 T2051767 Damper rubbing strip Triumph T2051767

Damper rubbing strip Triumph T2051767

 € 40,99 5 - 8 Business days
#15 T3330727 Screw but/hd m6 x 20 slv Triumph T3330727

Screw but/hd m6 x 20 slv Triumph T3330727

 € 3,50 5 - 8 Business days
#16 T3010061 908 t908 all varients Triumph T3010061

908 t908 all varients Triumph T3010061

 € 7,49 5 - 8 Business days
#17 T2051773 Lower chainguard moulded Triumph T2051773

Lower chainguard moulded Triumph T2051773

 € 67,00 5 - 8 Business days
#18 T3202304 Bolt rhhf m6 x 20 slv Triumph T3202304

Bolt rhhf m6 x 20 slv Triumph T3202304

 € 5,48 Quantity needed: 2 | 5 - 8 Business days

Servicing your Triumph Tiger 800 XC?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Triumph Tiger 800 XC, to be able to carry out the maintenance on your Triumph Tiger 800 XC as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Triumph Tiger 800 XC.

Triumph Tiger 800 XC parts Triumph Tiger 800 XC parts

Find the parts while repairing your Triumph!

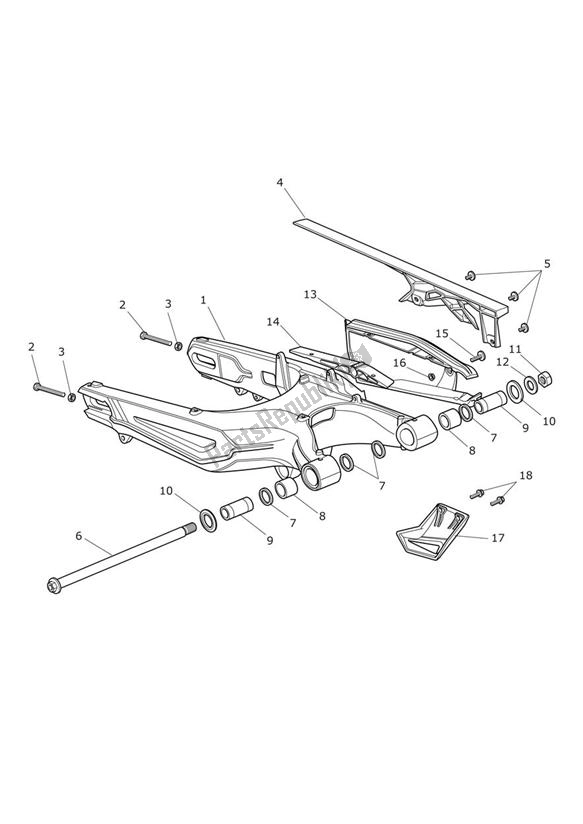

The technical drawing shows all original parts for the Swingarm of the Triumph Tiger 800 XC 2010 - 2020. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Triumph items, but they can also be replacement aftermarket items, which are suitable for the Swingarm. These articles of course also fit on the Triumph Tiger 800 XC 2010 - 2020, but serve as a cheaper alternative than the original parts of Triumph.
