All parts for the Rear Suspension Linkage of the Triumph Tiger XR UP TO VIN 855531 1215 2015 - 2017

Here you can find all the spareparts that belong on the Rear Suspension Linkage of your Triumph Tiger XR UP TO VIN 855531 1215 2015 - 2017.

All parts for the Rear Suspension Linkage of the Triumph Tiger XR UP TO VIN 855531 1215 2015 - 2017
< Scroll to zoom >
#
Article
Description
Price
#1 T2057306 Draglink cast aluminium Triumph T2057306

Draglink cast aluminium Triumph T2057306

€ 36,00 5 - 8 Business days
#2 T2057323 Droplink plates black Triumph T2057323

Droplink plates black Triumph T2057323

€ 52,01 Quantity needed: 2 | 5 - 8 Business days
#3 T2057399 Sleeve ground steel 90mm Triumph T2057399

Sleeve ground steel 90mm Triumph T2057399

€ 40,99 Quantity needed: 2 | 5 - 8 Business days
#4 T2057401 Sleeve ground steel 26mm Triumph T2057401

Sleeve ground steel 26mm Triumph T2057401

€ 14,00 5 - 8 Business days
#5 T3800199 Bearing needle roller 20 x 26 x 20 Triumph T3800199

Bearing needle roller 20 x 26 x 20 Triumph T3800199

€ 15,00 Quantity needed: 5 | 5 - 8 Business days
#6 T3600178 Seal 20 x 26 x 4 Triumph T3600178

Seal 20 x 26 x 4 Triumph T3600178

€ 7,27 Quantity needed: 8 | 5 - 8 Business days
#7 T3800060 Bearing, needle roller, 202620 Triumph T3800060

Bearing, needle roller, 202620 Triumph T3800060

€ 36,00 5 - 8 Business days
#8 T2057354 Sleeve, linkage, dia 20.0x30.5 Triumph T2057354

Sleeve, linkage, dia 20.0x30.5 Triumph T2057354

€ 11,00 5 - 8 Business days
#9 T3350234 Locknut, flgd, m12x1.25, silver Triumph T3350234

Locknut, flgd, m12x1.25, silver Triumph T3350234

€ 6,15 Quantity needed: 4 | 5 - 8 Business days
#10 T3332125 Bolt, tx, m12 x 56, slv Triumph T3332125

Bolt, tx, m12 x 56, slv Triumph T3332125

€ 5,90 5 - 8 Business days
#11 T3334680 Bolt, hhf, m12x1.25x119, slv Triumph T3334680

Bolt, hhf, m12x1.25x119, slv Triumph T3334680

€ 8,19 Quantity needed: 2 | 5 - 8 Business days
#12 T3150316 Bolt hhf m12 x 70 silver Triumph T3150316

Bolt hhf m12 x 70 silver Triumph T3150316

€ 12,00 5 - 8 Business days

Servicing your Triumph Tiger XR UP TO VIN 855531 1215?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Triumph Tiger XR UP TO VIN 855531 1215, to be able to carry out the maintenance on your Triumph Tiger XR UP TO VIN 855531 1215 as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Triumph Tiger XR UP TO VIN 855531 1215.


Find the parts while repairing your Triumph!

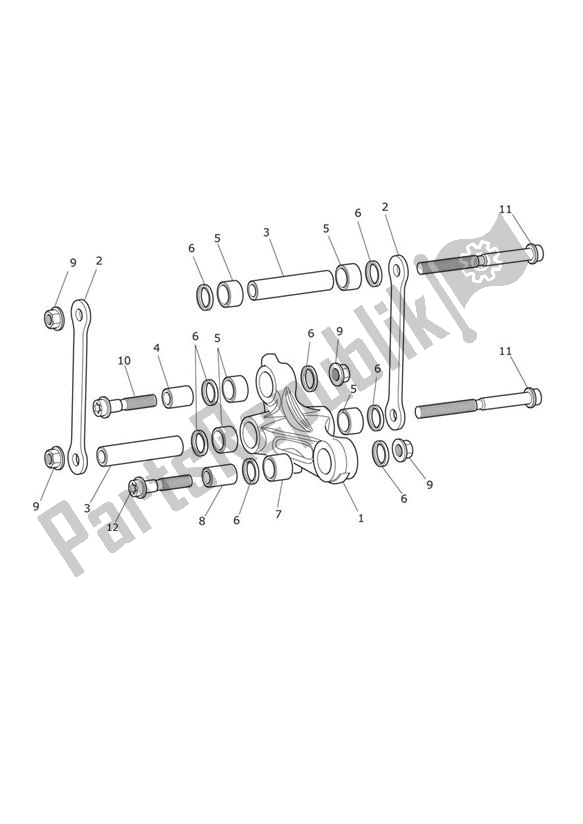

The technical drawing shows all original parts for the Rear Suspension Linkage of the Triumph Tiger XR UP TO VIN 855531 1215 2015 - 2017. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Triumph items, but they can also be replacement aftermarket items, which are suitable for the Rear Suspension Linkage. These articles of course also fit on the Triumph Tiger XR UP TO VIN 855531 1215 2015 - 2017, but serve as a cheaper alternative than the original parts of Triumph.
