All parts for the Cdi Magneto Assy of the Derbi Atlantis 4T 50 CC 100 E2 2004

Here you can find all the spareparts that belong on the Cdi Magneto Assy of your Derbi Atlantis 4T 50 CC 100 E2 2004.

All parts for the Cdi Magneto Assy of the Derbi Atlantis 4T 50 CC 100 E2 2004
< Scroll to zoom >
#
Article
Description
Price
#1 828662 Screw Piaggio Group 828662

Screw Piaggio Group 828662

€ 1,27 1 - 2 Weeks
#2 006965 Washer 5.3x10x10 Piaggio Group 006965

Washer 5.3x10x10 Piaggio Group 006965

€ 0,74 1 - 2 Weeks
#3 289005 Flanged nut Piaggio Group 289005

Flanged nut Piaggio Group 289005

€ 0,93 1 - 2 Weeks
#4 969243 Rotor Piaggio Group 969243

Rotor Piaggio Group 969243

€ 98,08 1 - 2 Weeks
#5 969228 Stator Piaggio Group 969228

Stator Piaggio Group 969228

€ 64,29 1 - 2 Weeks
#6 288474 O-ring 20,35x1,78 Piaggio Group 288474

O-ring 20,35x1,78 Piaggio Group 288474

€ 0,52 1 - 2 Weeks
#7 000267 Transmission key Piaggio Group 000267

Transmission key Piaggio Group 000267

€ 2,58 1 - 2 Weeks
#8 288548 Oil filter plug Piaggio Group 288548

Oil filter plug Piaggio Group 288548

€ 18,15 1 - 2 Weeks
#9 285536 O-ring 31,47x1,78 Piaggio Group 285536

O-ring 31,47x1,78 Piaggio Group 285536

€ 1,71 1 - 2 Weeks
#10 431242 Oil filter Piaggio Group 431242

Oil filter Piaggio Group 431242

€ 7,38 1 - 2 Weeks
#12 015585 Screw m5x12 Piaggio Group 015585

Screw m5x12 Piaggio Group 015585

€ 1,10 1 - 2 Weeks
#13 841645 Fan Piaggio Group 841645

Fan Piaggio Group 841645

€ 47,51 5 - 8 Business days
#14 827085 Gasket ring Piaggio Group 827085

Gasket ring Piaggio Group 827085

€ 0,56 1 - 2 Weeks
#15 832130 Complete oil level dipstick Piaggio Group 832130

Complete oil level dipstick Piaggio Group 832130

€ 5,48 1 - 2 Weeks
#16 015856 Screw m5x21 Piaggio Group 015856

Screw m5x21 Piaggio Group 015856

€ 0,07 1 - 2 Weeks
#17 00002052051 Screw Piaggio Group 00002052051

Screw Piaggio Group 00002052051

€ 5,31 1 - 2 Weeks
#18 847181 Washer Piaggio Group 847181

Washer Piaggio Group 847181

€ 1,56 1 - 2 Weeks
#19 484123 Screw w/ flange Piaggio Group 484123

Screw w/ flange Piaggio Group 484123

€ 0,56 1 - 2 Weeks
#20 00G04401462 Nut d5 Piaggio Group 00G04401462

Nut d5 Piaggio Group 00G04401462

€ 1,23 1 - 2 Weeks
#21 483785 Pin Piaggio Group 483785

Pin Piaggio Group 483785

€ 4,90 1 - 2 Weeks
#23 969348 Screened cap Piaggio Group 969348

Screened cap Piaggio Group 969348

€ 15,68 1 - 2 Weeks
#24 828339 Spark plug prot.collar Piaggio Group 828339

Spark plug prot.collar Piaggio Group 828339

€ 4,30 1 - 2 Weeks
#25 080341 Cavo base a.t. Piaggio Group 080341

Cavo base a.t. Piaggio Group 080341

€ 3,75 1 - 2 Weeks
#26 231571 Insulating cap Piaggio Group 231571

Insulating cap Piaggio Group 231571

€ 3,55 1 - 2 Weeks

Servicing your Derbi Atlantis 4T 50 CC 100 E2?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Derbi Atlantis 4T 50 CC 100 E2, to be able to carry out the maintenance on your Derbi Atlantis 4T 50 CC 100 E2 as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Derbi Atlantis 4T 50 CC 100 E2.


Find the parts while repairing your Derbi!

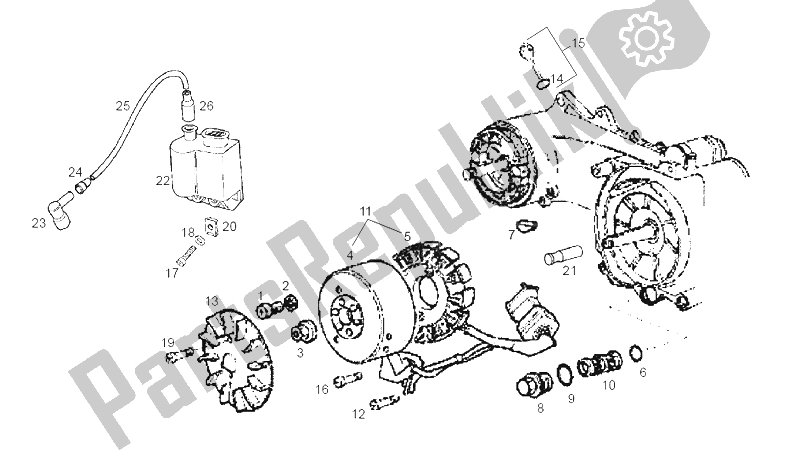

The technical drawing shows all original parts for the Cdi Magneto Assy of the Derbi Atlantis 4T 50 CC 100 E2 2004. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Derbi items, but they can also be replacement aftermarket items, which are suitable for the Cdi Magneto Assy. These articles of course also fit on the Derbi Atlantis 4T 50 CC 100 E2 2004, but serve as a cheaper alternative than the original parts of Derbi.
