derbi, 031091 hex screw m6x22, 969230 cylinder base gasket 0,5, 969213 anello elastico ritegno spinotto, 849055 cylinder-piston-wrist pin. ring. assy., 834793 cylinder-piston-wrist pin. ring. assy., 969603 cylinder with piston, 969214 piston pin, 8347940002 piston assy 2a selez.b, 9699220002 piston assy 2a selez.b, 8347940004 piston assy 4a selez.d, 9699220004 piston assy 4a selez.d, 9696045002 piston assy cat.2, 8347940003 piston assy 3a selez.c, 9696045004 kolben, kompl., 9696045003 piston assy cat.3, 9696045001 piston assy cat.a, 834712 compression ring, 969215 ring, 834713 piston-ring, 969216 ring, 834714 oil scraper ring, 969217 oil scraper ring, 239388 pin d.9.5 h=15, B015956 pin d.9.5 h=15

All parts for the Cylinder - Piston of the Derbi Atlantis 4T 50 CC 100 E2 2004

Here you can find all the spareparts that belong on the Cylinder - Piston of your Derbi Atlantis 4T 50 CC 100 E2 2004.

All parts for the Cylinder - Piston of the Derbi Atlantis 4T 50 CC 100 E2 2004
< Scroll to zoom >
#
Article
Description
Price
#1 031091 Hex screw m6x22 Piaggio Group 031091

Hex screw m6x22 Piaggio Group 031091

€ 0,52 1 - 2 Weeks
#2 969230 Cylinder base gasket 0,5 Piaggio Group 969230

Cylinder base gasket 0,5 Piaggio Group 969230

€ 4,99 1 - 2 Weeks
#5 969214 Piston pin Piaggio Group 969214

Piston pin Piaggio Group 969214

€ 14,69 1 - 2 Weeks
#6 8347940004 Piston assy 4a selez.d Piaggio Group 8347940004

Piston assy 4a selez.d Piaggio Group 8347940004

€ 53,34 3 - 8 Weeks
#6 8347940003 Piston assy 3a selez.c Piaggio Group 8347940003

Piston assy 3a selez.c Piaggio Group 8347940003

€ 53,34 3 - 8 Weeks
#6 8347940002 Piston assy 2a selez.b Piaggio Group 8347940002

Piston assy 2a selez.b Piaggio Group 8347940002

€ 57,64 3 - 8 Weeks
#6 9696045001 Piston assy cat.a Piaggio Group 9696045001

Piston assy cat.a Piaggio Group 9696045001

€ 72,30 1 - 2 Weeks
#6 9696045002 Piston assy cat.2 Piaggio Group 9696045002

Piston assy cat.2 Piaggio Group 9696045002

€ 76,64 1 - 2 Weeks
#6 9696045003 Piston assy cat.3 Piaggio Group 9696045003

Piston assy cat.3 Piaggio Group 9696045003

€ 76,64 1 - 2 Weeks
#6 9696045004 Kolben, kompl. Piaggio Group 9696045004

Kolben, kompl. Piaggio Group 9696045004

€ 76,64 1 - 2 Weeks
#7 834712 Compression ring Piaggio Group 834712

Compression ring Piaggio Group 834712

€ 10,47 1 - 2 Weeks
#7 969215 Ring Piaggio Group 969215

Ring Piaggio Group 969215

€ 10,47 1 - 2 Weeks
#8 834713 Piston-ring Piaggio Group 834713

Piston-ring Piaggio Group 834713

€ 9,41 1 - 2 Weeks
#8 969216 Ring Piaggio Group 969216

Ring Piaggio Group 969216

€ 9,41 1 - 2 Weeks
#9 834714 Oil scraper ring Piaggio Group 834714

Oil scraper ring Piaggio Group 834714

€ 11,75 1 - 2 Weeks
#9 969217 Oil scraper ring Piaggio Group 969217

Oil scraper ring Piaggio Group 969217

€ 11,75 1 - 2 Weeks
#10 B015956 Pin d.9.5 h=15 Piaggio Group B015956

Pin d.9.5 h=15 Piaggio Group B015956

€ 0,91 1 - 2 Weeks

Servicing your Derbi Atlantis 4T 50 CC 100 E2?

Then you have come to the right place at partsrepublik! We have a wide range of products for your Derbi Atlantis 4T 50 CC 100 E2, to be able to carry out the maintenance on your Derbi Atlantis 4T 50 CC 100 E2 as well as possible. With a well-maintained motorcycle you will go on a tour faster than with a motorcycle that you are not sure of, or that can complete the ride. By performing the correct maintenance on your motorcycle, you can be sure that you can always go on the road carefree! We also have an extensive range of accessories. We have listed a number of relevant product groups for you;

Curious about all products and accessories? View them by clicking the button below. There you will find a complete overview of relevant articles for your Derbi Atlantis 4T 50 CC 100 E2.


Find the parts while repairing your Derbi!

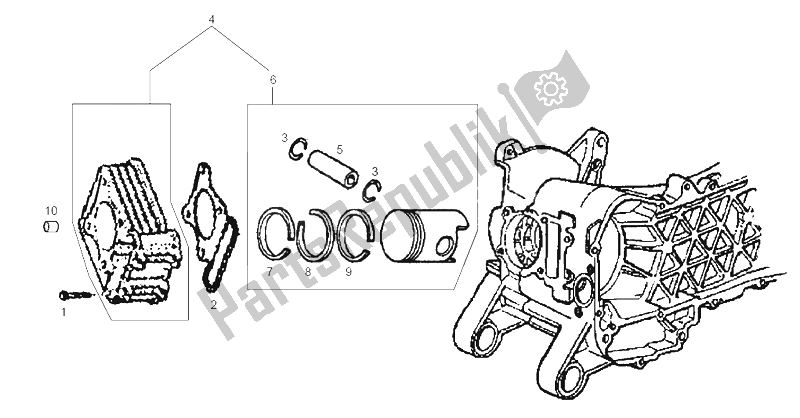

The technical drawing shows all original parts for the Cylinder - Piston of the Derbi Atlantis 4T 50 CC 100 E2 2004. By clicking in the list you go directly to the articles belonging to the reference number. These items can be original Derbi items, but they can also be replacement aftermarket items, which are suitable for the Cylinder - Piston. These articles of course also fit on the Derbi Atlantis 4T 50 CC 100 E2 2004, but serve as a cheaper alternative than the original parts of Derbi.
